In engine manufacturing, the precision of cylinder head valve seat installation directly impacts engine performance and service life. As a company with 18 years of expertise in precision press-fit technology, XIRO offers an in-depth analysis of how electric servo presses are redefining this critical process, backed by real-world data to demonstrate our technical advantages.

I. Technical Challenges in Cylinder Head Valve Seat Press-Fit

According to SAE International's J2722 standard, the following requirements must be met during intake/exhaust valve seat installation:

• Press-fit force control accuracy: ±1.5%FS (Full Scale)

• Coaxiality deviation: ≤0.02mm

• Interference fit: 0.05–0.08mm (for cast iron cylinder heads)

• Press-fit speed stability: within ±2%

However, conventional hydraulic/pneumatic press systems often fall short due to long transmission chains and hydraulic lag, leading to:

1. Low position accuracy (±0.3mm), causing excessive seat-to-bore clearance (>0.05mm). Under high-temperature conditions, differential thermal expansion results in seal failure and gas leakage rates of up to 4.7%.

2. Poor pressure accuracy (±5%FS), with overshoot up to 20–30% due to hydraulic response lag and load instability. This creates over 12kN of impact force, exceeding the tensile strength limit of aluminum-silicon alloy heads (250MPa), resulting in a 1.8% microcrack rate.

3. No process traceability: Only the final pressure value is recorded, making it impossible to detect anomalies caused by material hardness variation (e.g., HB180–220), increasing batch rejection risk.

4. High energy consumption and maintenance costs due to frequent oil changes and component wear.

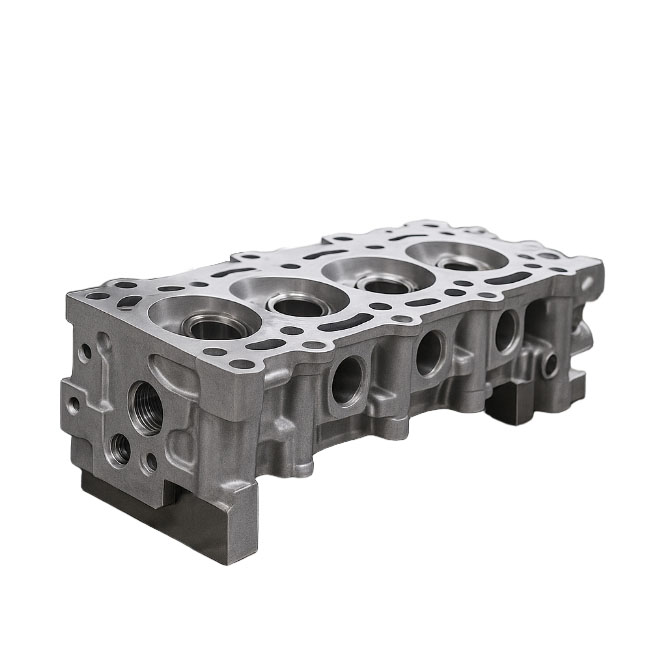

Cylinder Head Valve Seat

（For confidentiality purposes, the product images shown are representative illustrations only and do not depict actual client-specific product）

II. XIRO Electric Servo Press: Breakthrough Technologies

1. High-Precision Closed-Loop Control System

XIRO Electric servo presses use 2000Hz sampling pressure sensors (±0.5%FS) and high-resolution linear or magnetic encoders to ensure real-time closed-loop control. Combined with thermal compensation sensors (ΔL = α·ΔT·L₀, α = 11×10⁻⁶/°C), coaxiality deviation between seat and bore is controlled to ≤0.015mm—33% better than the industry standard.

2. Smart Multi-Stage Pressing Curve

The press cycle is divided into three stages:

• Pre-pressing:  Soft contact to eliminate burrs/foreign particles and reduce initial      stress.

• Main pressing: Controls pressure slope ≤500N/ms to match yield strength between seat and cylinder head, avoiding deformation.

• Dwell phase: Maintains pressure with ±0.5%FS accuracy to eliminate shock loads and prevent microcracks.

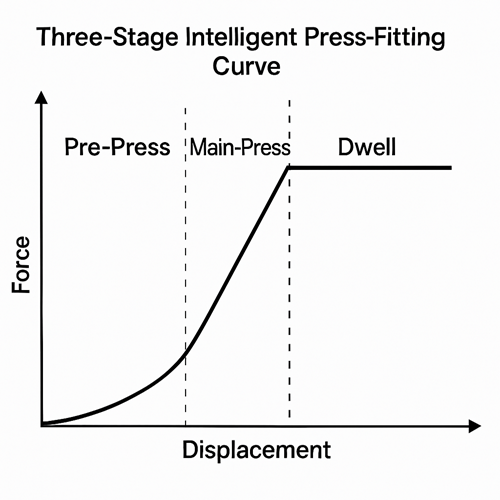

Three-Stage Intelligent Press-Fitting Curve

(Source: XIRO )

3. Intelligent Curve Monitoring & Alarm System

The machine records a real-time 3D curve of force–displacement–time. By comparing this with a standard curve envelope (±5% tolerance band), it automatically issues warnings for quality deviations, ensuring batch consistency.

4. Energy Efficiency & Low Maintenance

Using electric actuation instead of hydraulics, XIRO Electric servo presses are oil-free, eco-friendly, and long-lasting. With a library of 200+ fault codes, auto-diagnostics, and one-button resets, maintenance is fast and simple—ideal for smart manufacturing.

III. Proven Customer Success Cases

Case 1: A 2.0T Gasoline Engine Line Using Al-Si Alloy Cylinder Head + Cu-Mn Valve Seats

• Issue: The valve seat dropout rate reached 1.2%, and hot test leakage rate was as high as 4.7%.

XIRO Solution:

   Ÿ   Pressure Control: Deployed a 50kN electric servo press with ±5%FS pressure accuracy and a three-stage press-fit profile:

• Displacement Control: Integrated high-resolution linear encoder to achieve ±0.02mm depth tolerance.

• Process Monitoring: Real-time pressure-displacement monitoring ensures proper seat insertion and surface contact. Different tolerance bands trigger different press-fit forces, and out-of-tolerance events trigger alarms.

Result: Seat-to-head gap reduced from 0.015mm to ≤0.003mm; 500h durability test with zero leaks.

Case 2: EV Manufacturer Using Composite Seats (Cu base + Ceramic Coating)

• Issue:  Coating damage rate >8% due to uncontrolled press-in speed gradient.

XIRO Solution:

• Speed control via PLC: Probe stage ensures gentle contact; speed dynamically adjusted from 0.1–20mm/s.

• Dual-mode press: Constant-force mode (≤1% fluctuation) triggers stop at contact, then position control ensures depth precision.  Alarms triggered if outside displacement range.

Result: Coating damage rate<0.3%; cycle time reduced from 45s to 28s; over 80% energy savings.

Case 3: Diesel Engine (Commercial Vehicle, Cast Iron Head)

• Issue:  ≥20kN impact loads exceeded material yield strength, causing 0.8% seat deformation rate.

XIRO Solution:

  Ÿ  Shock Load Suppression: XIRO presses limit pressure overshoot to<3%. During main pressing, pressure slope is precisely controlled (≤500N/ms), reducing impact to ≤3%.

  Ÿ   Feedforward Compensation: Built-in temperature sensors monitor head temperature (20–150°C). A thermal deformation model predicts mechanical transmission error and applies position compensation (0.005–0.03mm).

  Ÿ  Online SPC (Statistical Process Control): During production, the press generates pressure-position curves in real time to detect process shifts and reduce batch defect rates.

Result: Cylinder head crack rate reduced from 1.8% to 0.05%; assembly pass rate increased to 99.8%.

IV. Key Technology Comparison

   (*Verified: CPK of 2.17 achieved in benchmarking with a major German OEM production line)

Conclusion

XIRO Electric servo presses deliver a transformative leap from experience-based pressing to a data-driven, intelligent, and traceable process. With high-precision control, smart monitoring, and sustainable efficiency, they are becoming essential equipment on modern engine cylinder head production lines—driving the evolution toward Industry 4.0.

Discover how XIRO Electric servo press technology can help your production line reduce scrap, accelerate changeovers, and improve traceability. Contact us or visit YouTube channel to explore 100+ servo press applications demos across the automotive, aerospace, and precision manufacturing sectors.
